Integrated Super Energy Storage and EV Charging System

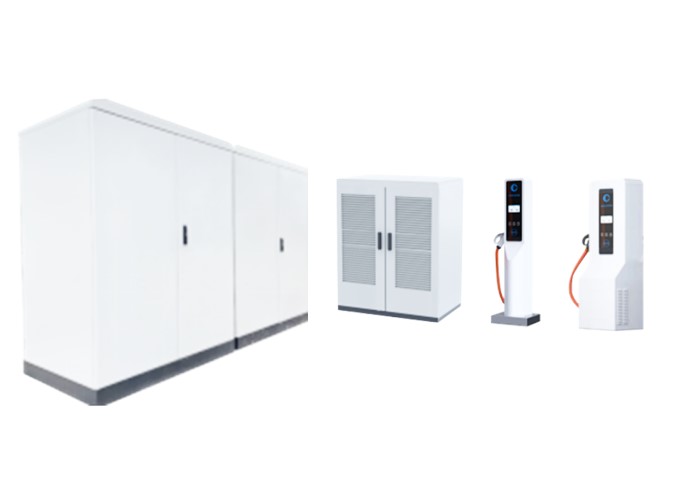

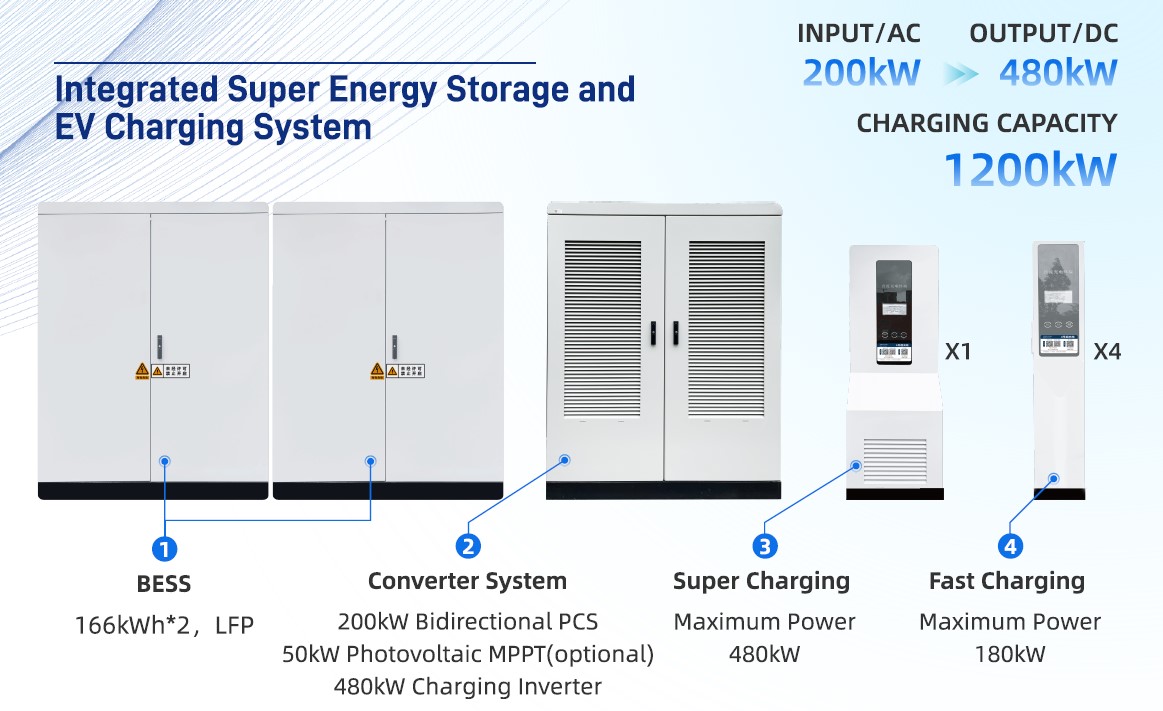

LF integrated super energy storage and EV charging system, built upon a DC bus architecture, and integrates a LFP BESS, a 480kW super fast charging pile system and photovoltaic MPPT.

The system also leverages EMS to facilitate both local and remote intelligent management.

Pre-loaded with multiple energy dispatch algorithms, it adeptly manages the balance between energy supply and demand among the power grid, energy storage units, and electric vehicles. By tactfully utilizing the price differential between peak and off-peak periods and making the most of limited grid capacity, the system achieves efficient energy utilization and can provide power back to the grid as needed.

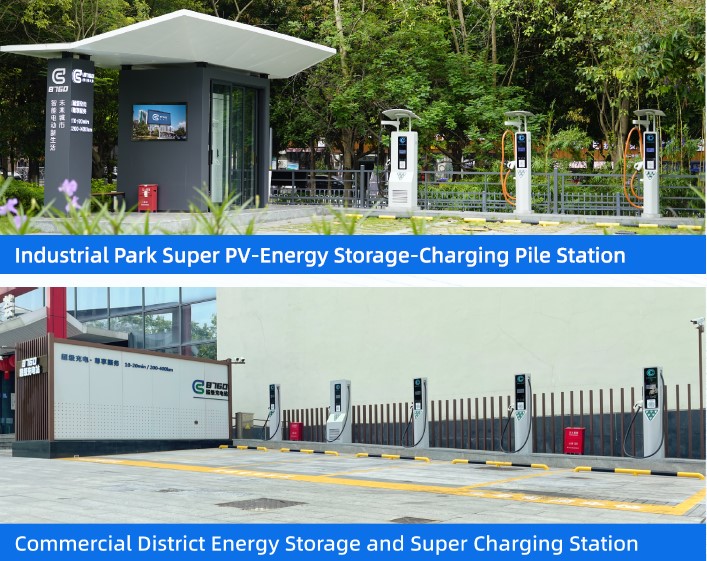

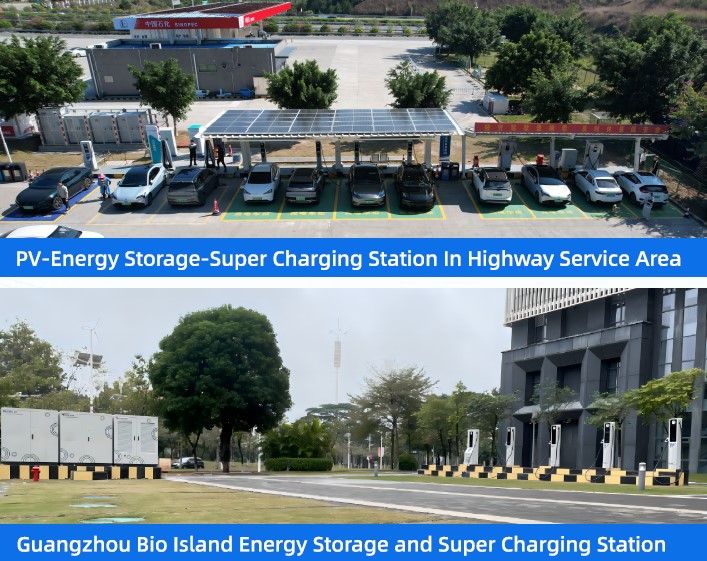

Its modular design ensures that it occupies minimal space, is easy to install and maintain, and can be flexibly deployed across a variety of settings such as parking lots, commercial centers,
residential neighborhoods, and more.

• Using Two Bidirectional AC/DC Power Modules With100kW/unit, Realizing Power To Grid When Needed.
• Centralized Charging Converter Module, Automatic Charging
  Scheduling, Up To 480kW Ultra Fast Charging.

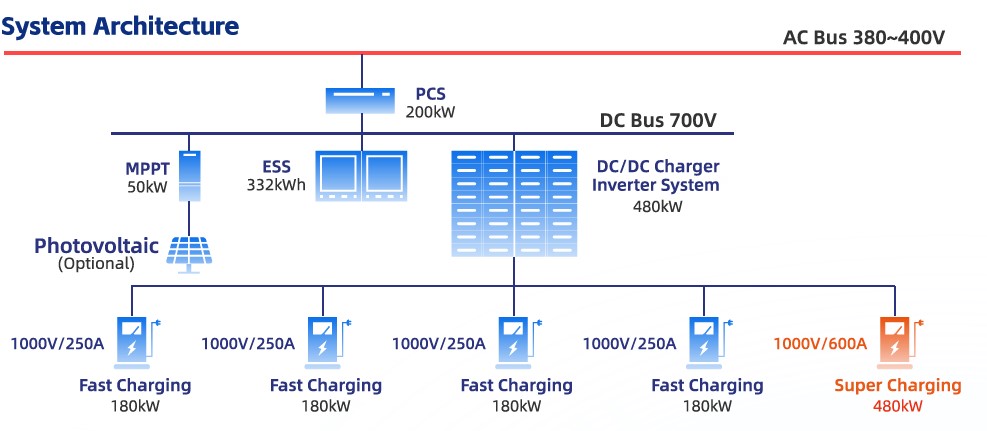

• DC Bus Architecture Integrates Energy Storage, Charging Piles and PV.
• providing higher output with less input when the transformer capacity is insufficient.
